■ Tightening Assembly Automation
|
● N Series
|
| High-speed precision numerial control, real-time display and storage of tightening process data, inspection report whether each tightening is qualified. |
| |
 |
| |
● Multi-spindle nutrunner
|
| Customized according to usage requirements, using the SNGB series tools. |
| |
 |
| |
● Nutrunner with arm
|
| Customized according to usage requirements, used in conjunction with the SNGB series tools. |
| |
 |
| |

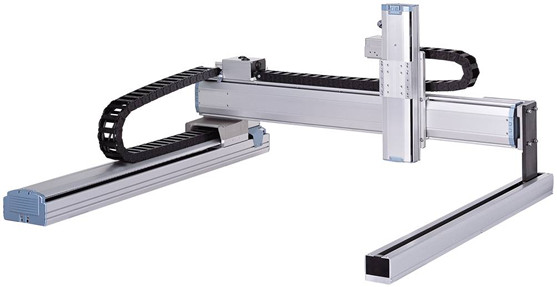

● Positioning unit
|
| Customized according to usage requirements, used in conjunction with the SNGB series tools. |
| |
 |
| |

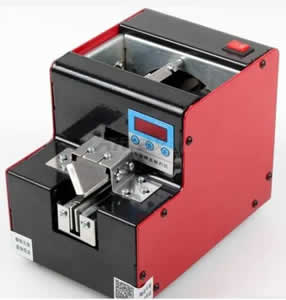

● Automated screw & bolt feeder
|
| Customized according to usage requirements, used in conjunction with the SNGB series tools. |
| |
 |
| |

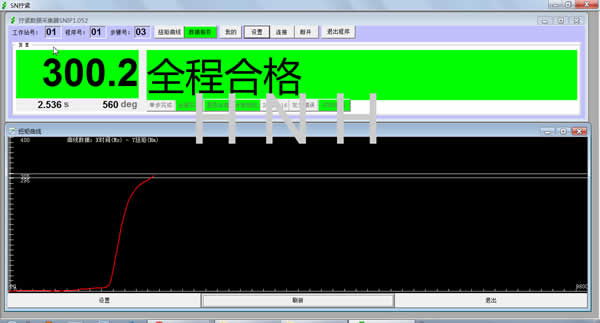

● Tightening data logger: SNIP2.2
|
| Running on MS Windows, it is connected to the SNGB series controller through the COM/USB/TCP port, and automatically collects and stores tightening data for later traceability, analysis and quality control. |
| |
 |
| |
● Barcode scanner
|
| Barcode can be associated and stored with tightening data. |
| |
  |
| |
● Torque tester
|
| It is used to measure and calibrate tightening tools, measure the peak value of tightening torque, torque display accuracy ±0.5% or ±0.2%, full scale specifications 0.5Nm, 1.0Nm, 2.0Nm, 5.0Nm, 10Nm, 20Nm, 50Nm, 100Nm, 200Nm, 500Nm, 1000Nm, 2000Nm, 5000Nm. |
| |
 |
| |
|
